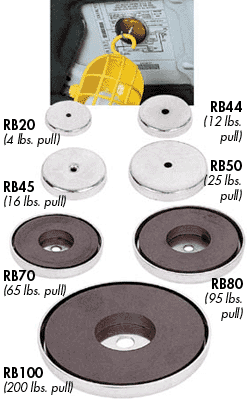

Round base magnets are powerful low-profile magnets with an attachment hole in the center. Attach a hook or knob to position or hold inspection equipment, indicator gauges, lamps, signs, antennas and more. Magnetic on one side. All round base magnets are nickel plated. For other types of plating, call one of our knowledgeable sales specialists.

Because of their low cost, high holding power, and compact design, these magnetic bases are very versatile. For example, these can be used to hold towing lights, emergency lights, or trouble lights to a vehicle.


Part No.
Weight
(lbs.)
Pounds
Pull
Dimensions / Inches
A (Dia.)
C (Thk.)
B ( Hole)
D (Hole)
RB-25S
0.032
8
1.2
0.17
0.19
0.125
RB-44N
0.09
12
1.7
0.3
0.885
10-24TH
RB-45NMF
0.07
16
1.42
0.26
0.37
0.2
RB-55NMF
0.164
30
2.19
0.31
0.95
0.24
RB-70NMF
0.34
65
2.63
0.4
1
0.26
RB-75NMF
0.355
75
2.8
0.36
1
0.27
RB-85NMF
0.535
95
3.19
0.45
1.25
0.28
RB100
1.44
200
4.9
0.5
2.72
0.5
*RB44N has a 10-24 tapped hole


Part No. RB-25S        Price: $0.63        Quantity:

Part No. RB44N*        Price: $1.92        Quantity:

Part No. RB-45NMF        Price: $0.99       Quantity:

Part No. RB-55NMF        Price: $2.09       Quantity:

Part No. RB-70NMF        Price: $2.70       Quantity:

Part No. RB-75NMF        Price: $3.51       Quantity:

Part No. RB-85NMF        Price: $3.86        Quantity:

Part No. RB-100         Price: $7.86        Quantity:
